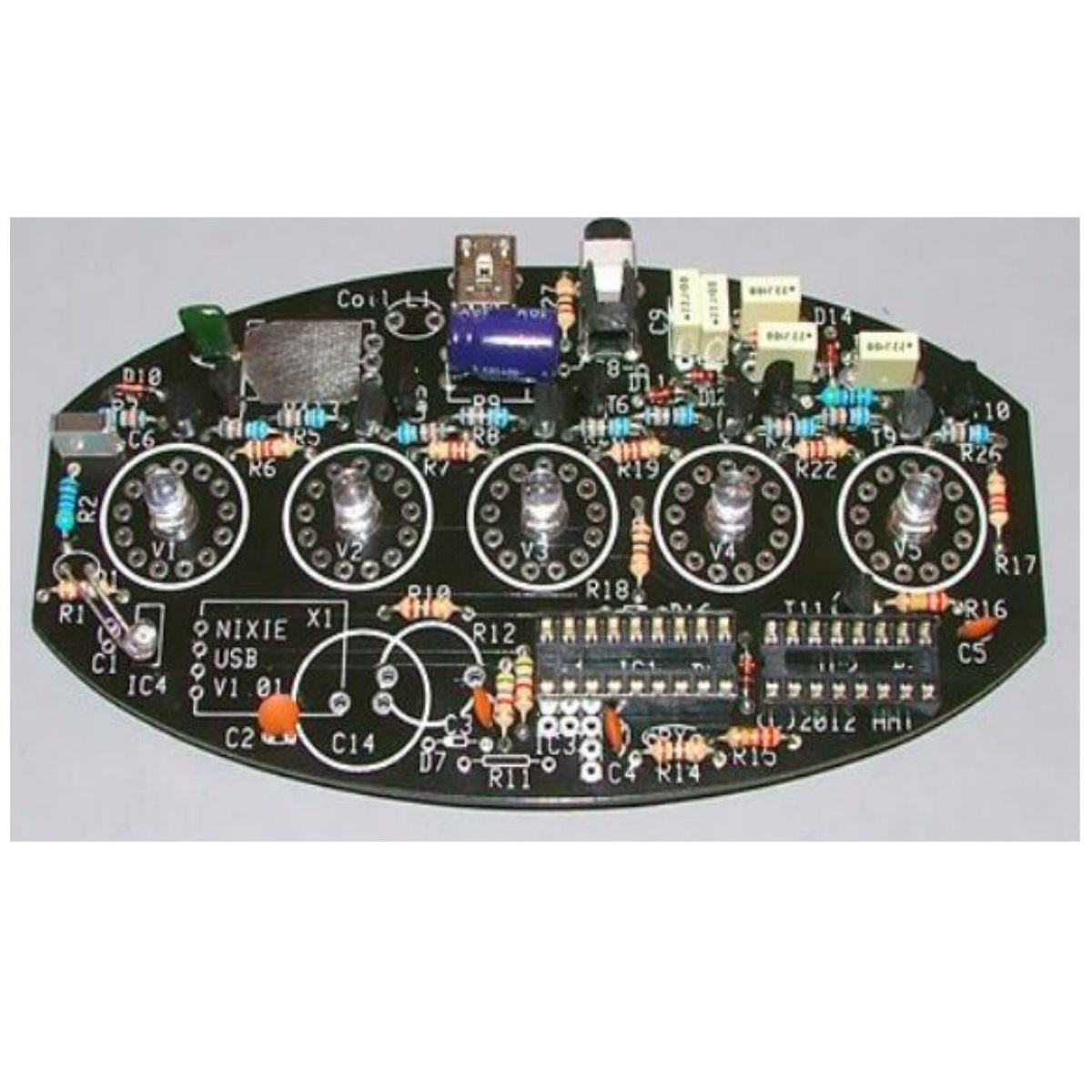

Lamps and Lanterns of PCBA Board Development Manufactures PCBA Service

PCB Assembly Process

Technical Requirement Professional Surface-mounting and Through-hole soldering Technology

Various sizes like 1206,0805,0603 components SMT technology

ICT(In Circuit Test),FCT(Functional Circuit Test) technology

PCB Assembly With UL,CE,FCC,Rohs Approval

Nitrogen gas reflow soldering technology for SMT

High Standard SMT&Solder Assembly Line

High density interconnected board placement technology capacity

Quote&Production Requirement Gerber File or PCB File for Bare PCB Board Fabricatio

Bom(Bill of Material) for Assembly,PNP(Pick and Place file) and Components Position also needed in assembly

To reduce the quote time, please provide us the full part number for each components,Quantity per board also the quantity for orders.

Testing Guide&Function Testing method to ensure the quality to reach nearly 0% scrap rate

OEM/ODM/EMS Services PCBA, PCB assembly: SMT & PTH & BGA

PCBA and enclosure design

Components sourcing and purchasing

Quick prototyping

Plastic injection molding

Metal sheet stamping

Final assembly

Test: AOI, In-Circuit Test (ICT), Functional Test (FCT)

Custom clearance for material importing and product exporting

Other  PCB Assembly Equipments SMT Machine: SIEMENS SIPLACE D1/D2 / SIEMENS SIPLACE S20/F4

Reflow Oven: FolunGwin FL-RX860

Wave Soldering Machine: FolunGwin ADS300

Automated Optical Inspection (AOI): Aleader ALD-H-350B,X-RAY Testing Service

Fully Automatic SMT Stencil Printer: FolunGwin Win-5

Packaging & Shipping

Selling Units:Single item

Single package size: 50X32X25 cm

Package Type:PCB,PCBA

Packaging Details: Vacuum innerside and carton box outside

Delivery Detail: Shipped in 5 days after payment

Shenzhen Fr4 PCB PCBA Manufacturer

Lead Time :4 days
